300-500kg/H Pork Beef Mutton Meat Vegetables Cutter Cutting Fresh
Meat Frozen Meat Slicer Slicing Machine
Product Description
Introduce for meat dicer machine:
The pork meat cutting machine can cut meat cubes (3-5 degrees below
zero), minced meat, fat and other raw materials into diced meat.The
pork meat cutting machine is made of 304 stainless steel, the
cutting knife is specially customized with high working efficiency.
The pork meat cutting machine is an essential equipment in meat
processing.
Meat cutting machine is an important equipment in the production
process of meat products. Mainly used to cut meat, fat and other
main raw materials into meat cubes required by users.
Adjust the size of the knife grid to cut shredded and sliced meat.
The size of the diced meat is determined by the number of blades in
the knife grid.

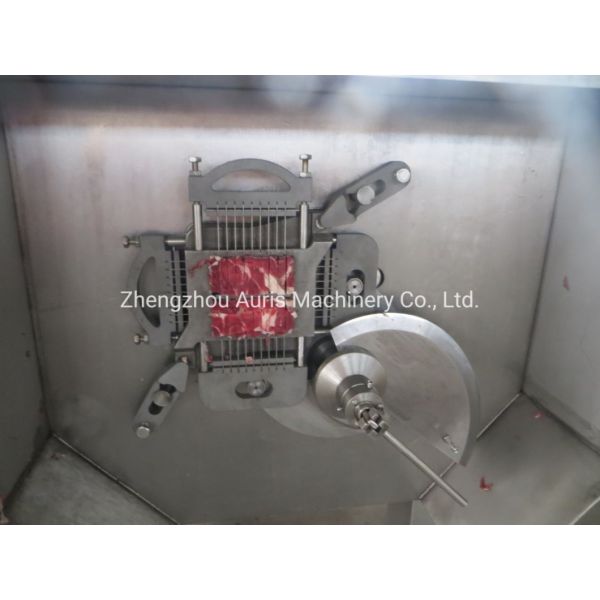

The frozen meat cutting machine is mainly composed of a frame, a
reducer, a motor, a tool rest, an eccentric shaft assembly, a main
cutter assembly, and a hydraulic system. The main motor drives the
main shaft to rotate through the reducer, and the shift fork on the
main shaft drives the upper knife grid and the lower knife grid to
reciprocate up and down and left and right. diced meat.
Features of meat dicer machine:
1.The whole machine is made of stainless steel,beautiful appearance
and easy to clean
2.Dice quickly and evenly
3.The machine has a visual observation window,you can see the
process of production
4.Simple operation,save time and labor.
5.The machine is made of 304Stainless steel,beautiful
appearrace,easy to clean.
6.Voltage is 380V/50Hz three phase.It can also be
customized:three-phase 220V/60Hz, three-phase 415V/50Hz,
three-phase 440V/50Hz..
7. Adjust the pre-pressure knob to ensure that the product is
consistent during the cutting process.
8. The meat material can be fed step by step, which can minimize
the extrusion of the product during the cutting process.
9. By changing the number of blades in the knife grid, it can cut
diced meat of different sizes, which is easy to combine.
Advantage of meat dicer machine:
1.The size of the meat is uniform, and the size of the meat can be
adjusted.
2.Full visualization of the machine production process.
3.The control panel can be set in different languages according to
customer requirements.
4.The machine is made of 304Stainless steel,beautiful
appearrace,easy to clean.
5.Voltage is 380V/50Hz three phase.It can also be
customized:three-phase 220V/60Hz, three-phase 415V/50Hz,
three-phase 440V/50Hz.
Our advantages:
1.The size of the meat is uniform, and the size of the meat can be
adjusted.
2.Full visualization of the machine production process.
3.The control panel can be set in different languages according to
customer requirements
Parameter of meat dicer machine:
| Model | AQD-350 | AQD-550 |
| Cutting slot size | 84*84*350mm | 120*120*550mm |
| Cutting size | (4mm,8mm,12mm)(6mm,12mm) | (6mm,12mm,24mm) (5mm,10mm,15mm, 20mm) |
| Overall size | 730*1410*980mm | 830*1660*1150mm |
| Voltage | 380v/50hz | 380v/50hz |
| Power | 3kw | 3.7kw |
| Capacity | 500-600kg/h | 700-900kg/h |
